Systém Pressix CC 41

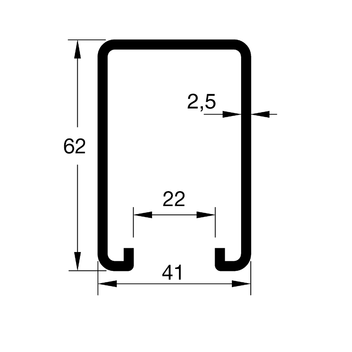

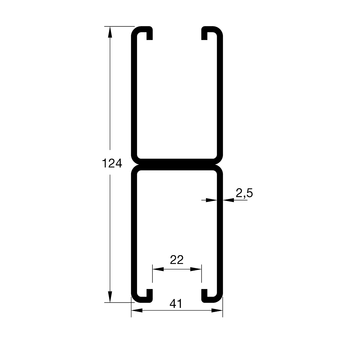

Lišta montážna MS 41/62/2,5
Prípustné hodnoty zaťaženia pri použití bodovej sily
| L [cm] | 41/62/2,5 [N] | 41/62/2,5 D [N] |
|---|---|---|
| 20 | 21314 | 67234 |
| 40 | 10653 | 33608 |
| 60 | 7097 | 22396 |
| 80 | 5317 | 16786 |
| 100 | 4248 | 13419 |
| 120 | 3535 | 11171 |
| 140 | 3024 | 9564 |
| 160 | 2641 | 8358 |
| 180 | 2342 | 7418 |
| 200 | 2102 | 6665 |
| 220 | 1842 | 6048 |
| 240 | 1538 | 5533 |
| 260 | 1300 | 5096 |
| 280 | 1110 | 4720 |
| 300 | 957 | 4394 |
| 320 | 830 | 4108 |
| 340 | 725 | 3855 |
| 360 | 636 | 3630 |
| 380 | 560 | 3427 |
| 400 | 495 | 3244 |
| 420 | 438 | 3064 |
| 440 | 388 | 2770 |
| 460 | 345 | 2514 |
| 480 | 306 | 2287 |
| 500 | 271 | 2087 |
| 520 | 240 | 1908 |
| 540 | 211 | 1748 |
| 560 | 186 | 1604 |
| 580 | 162 | 1474 |
| 600 | 141 | 1356 |
Výpočet podľa RAL GZ-655-C berúc do úvahy vlastú tiaž.
σzul ≤ 185 N/mm2
f ≤ L/200
